massmultiples™ : C3P19 Analog Triple multiDisplay
- (1280 x 1024) + (2360 x 2048) Aggregate Resolution
- 300cd/m² Image Brightness
- 700:1 (typical) Contrast Ratio
- 8 msec. Response Time
Three 19" diagonal LCD/TFT screens. Mounted

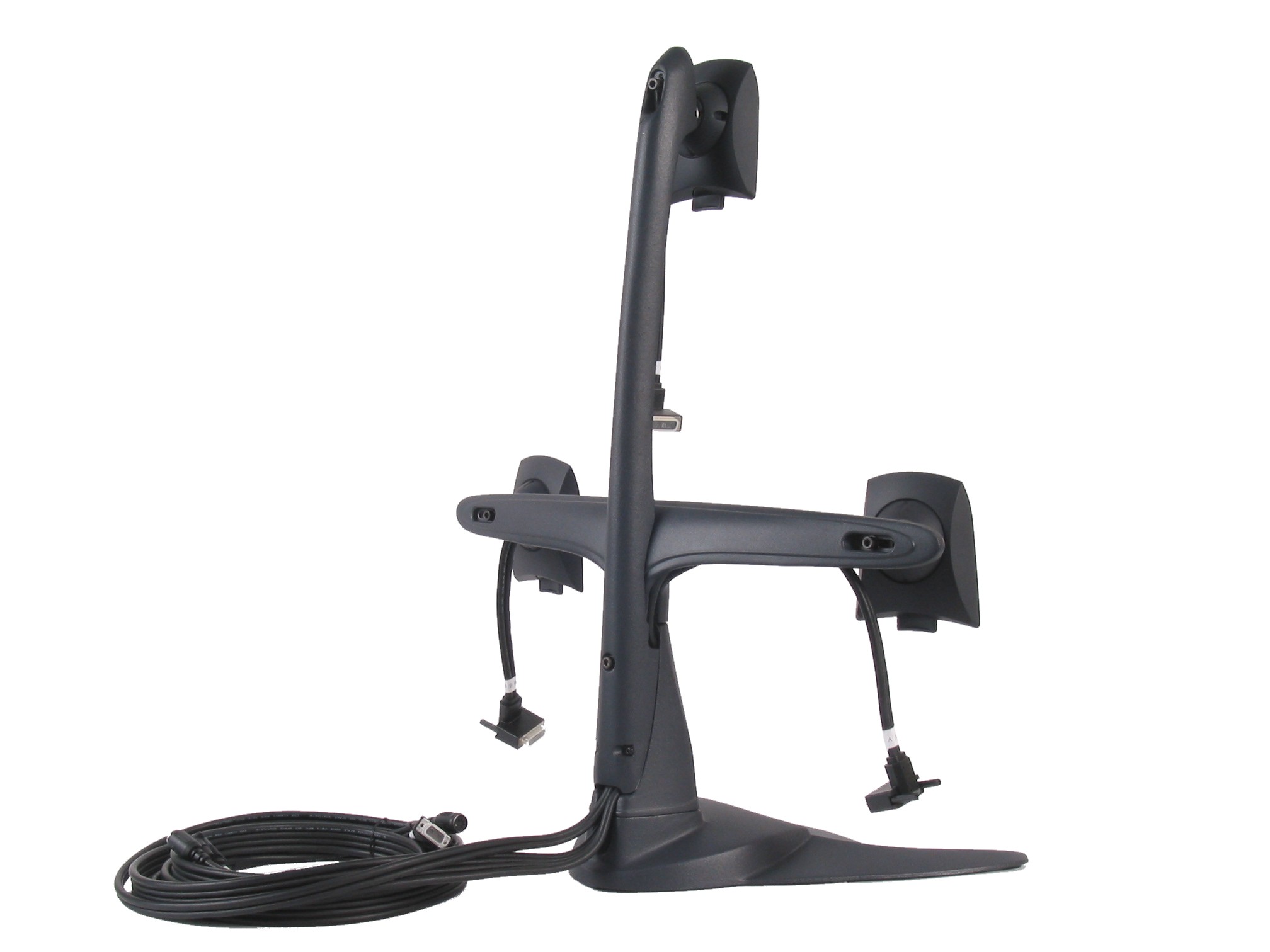

with our patented "quick connects" to a cast aluminum pedestal, finished with a durable powder coated surface; single
cable to CPU. |
|
|
Diagonal size: 19"
Viewable size: 19"
Dimensions (HxWxD): 87cm x 83cm x 33cm
Weight: 41.35lbs / 18.76kg
Image max H-view angle: +75° / -75°
Image max V-view angle: +75° / -60°
Color support: 16.7 million colors per Screen
Dot pitch (mm): 0.294(H) x 0.294(V)
Response Time: 8 msec
Image brightness: 300cd/m²
Image contrast ratio: 700:1 typical
Compatibility: PC, Mac
Factory preset modes:
640x400, 720x400, 640x480, 800x600, 832x624, 1024x768, 1280x1024
Panel controls: Power on/off, adjust +/-, select and menu
Operating system support:
Microsoft Windows 95/98, 2000, XP, NT, Vista, Mac OS 10+
On screen controls:
Contrast, brightness, H/V position, OSD position, recall settings,
color adjustment, sharpness, auto-configuration, phase, full-screen,
clock, tracking, expand.
Max resolution: 1280x1024 per Screen
Port(s) Connector(s) required:
3 x display video - VGA/VBE 15-pin HD for analog
Power: AC 110/220 VAC +/- 10% 50/60 Hz
Power consumption operational: 45 Watt / display panel
Cable(s) included: 1 display integrated cable
3 x 15-pin D-sub for analog
Mounting kit: Included
Power device: Power supply- desktop
Compliant standards: FCC-B, CE, IEC 60950, VESA DPMS, VESA DDC/CI
Localization: English
Service & support: 1-year warranty
Service & support details:
Limited warranty - parts & labor, 1 year – bring in.
Additional purchase for Extended Warranty. |
|

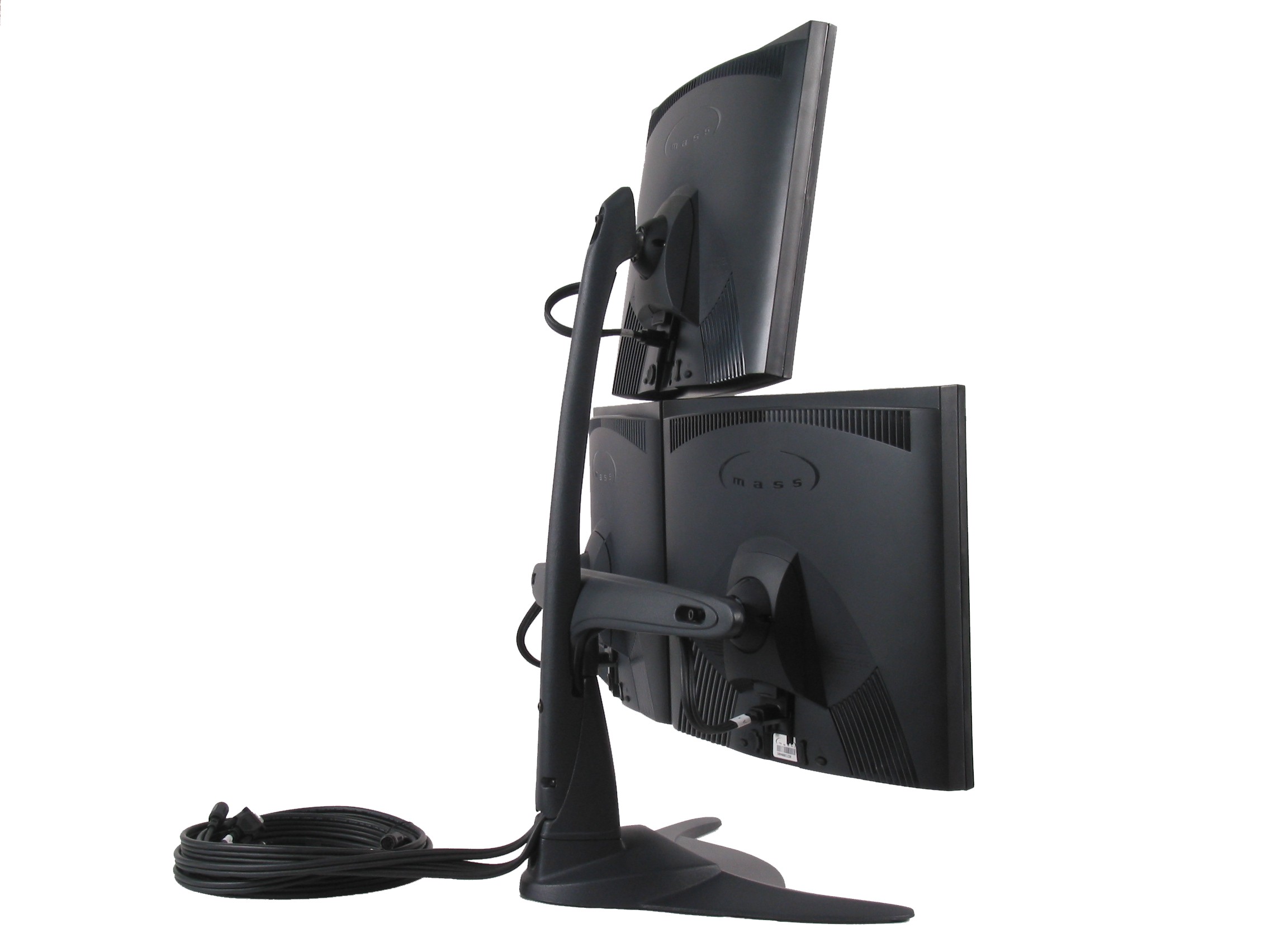

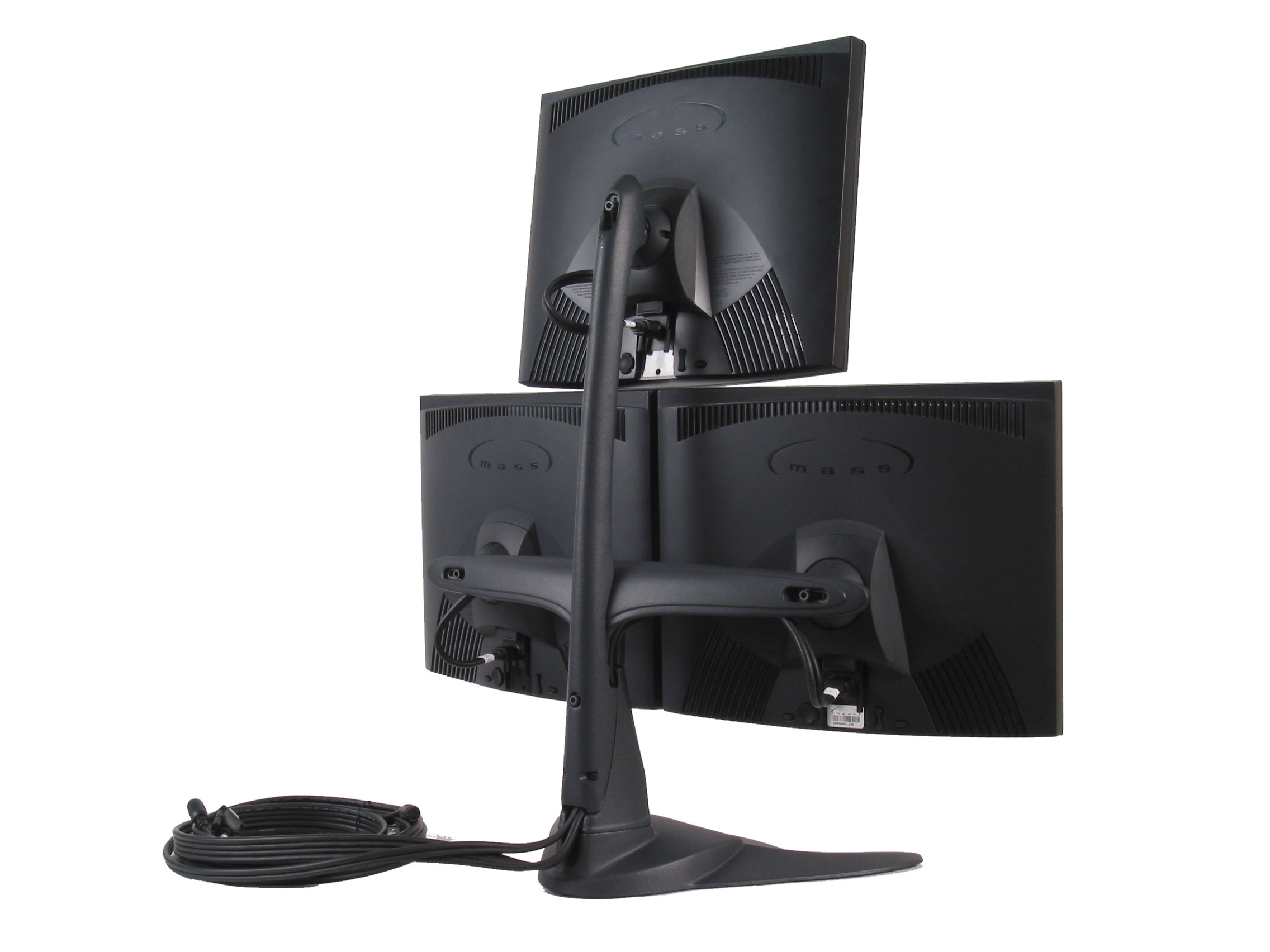

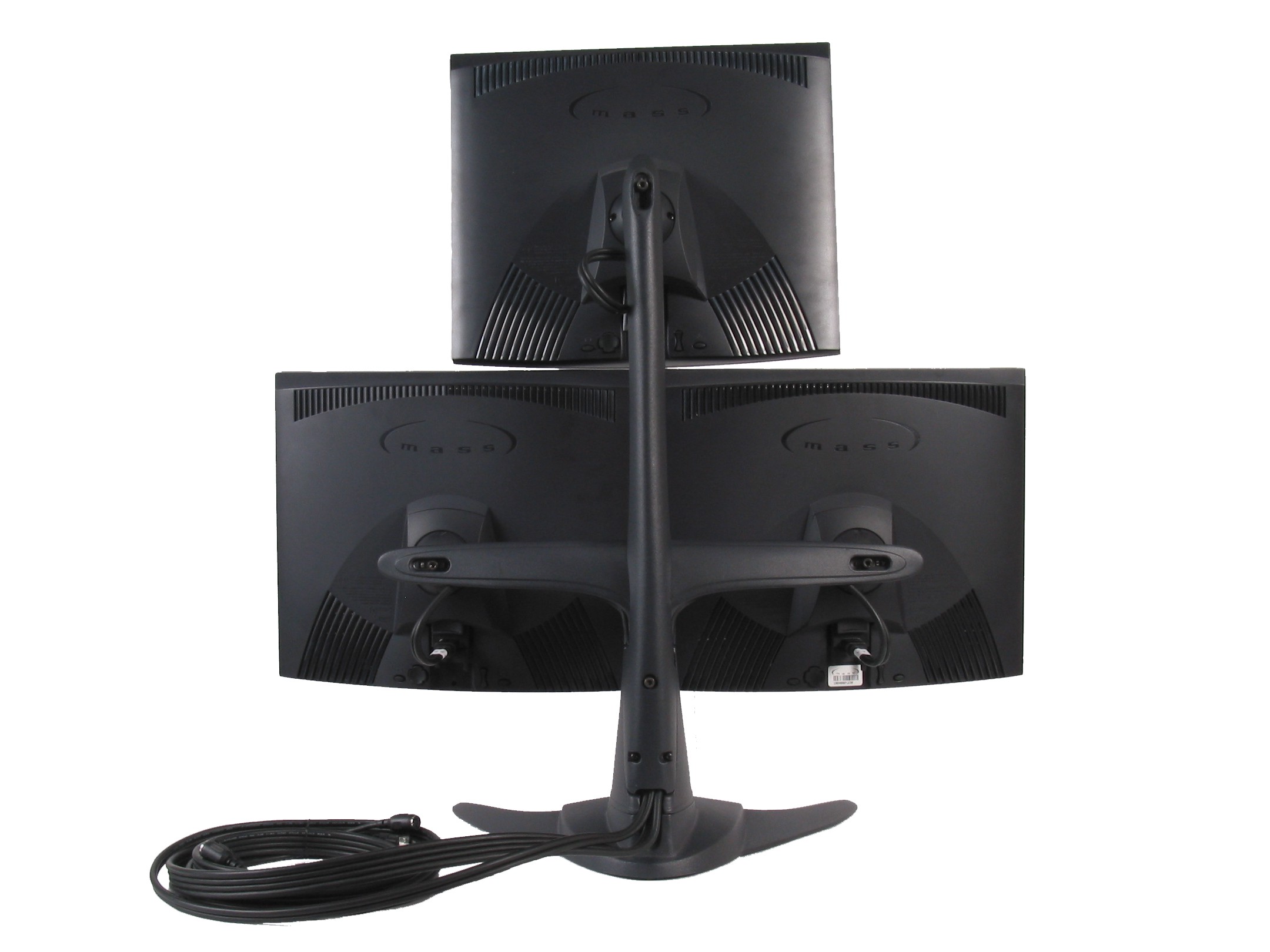

Alternative Closeup Views [
