massmultiples™ : C2H17 Analog Dual multiDisplay
- 2560 x 1024 Aggregate Resolution
- 300cd/m² Image Brightness
- 700:1 (typical) Contrast Ratio
- 8 msec. Response Time
Two 17" diagonal LCD/TFT screens. Mounted horizontally with our patented "quick
connects" to a cast aluminum pedestal; single integrated cable
to CPU. |
|
|
Diagonal size (per screen): 17"
Viewable image size (per screen): 17"
Dimensions (H x W x D): 50 cm x 74 cm x 25.5 cm
Weight: 24.75 lbs / 11.23 kg
Image max H-view angle: + 75° / - 75°
Image max V-view angle: + 75° / - 60°
Analog video signal: RGB
Color support: 16.2 million colors
Dot pitch (mm): 0.264(H) x 0.264(V)
Response Time: 8 msec
Image brightness: 300cd/m²
Image contrast ratio: 700:1 typical
Compatibility: PC, Mac
Factory preset modes:
640x400, 720x400, 640x480, 800x600, 832x624, 1024x768, 1280x1024
Panel controls: Power on/off, adjust +/-, select and menu
Operating system support:
MS Windows 95/98, 2000, XP, NT, Vista, Mac OS 10+
On screen controls:
Contrast, brightness, H/V position, OSD position, recall settings,
color adjustment, sharpness, auto-configuration, phase, full-screen,
clock, tracking, expand.
Max resolution: 1280x1024 per Screen
Port(s) Connector(s) required:
2 x display video - VGA/VBE 15-pin HD for analog
Power: AC 110/220 VAC +/- 10% 50/60 Hz
Power consumption operational: 30 Watt / display panel
Cable(s) included: 1 display integrated cable
2 x 15-pin D-sub for analog
Mounting kit: Included
Power device: Power supply- desktop
Compliant standards: FCC-B, CE, IEC 60950, VESA DPMS, VESA DDC/CI
Localization: English
Service & support: 1-year warranty
Service & support details:
Limited warranty - parts & labor, 1 year – bring in.
Additional purchase for Extended Warranty. |
|

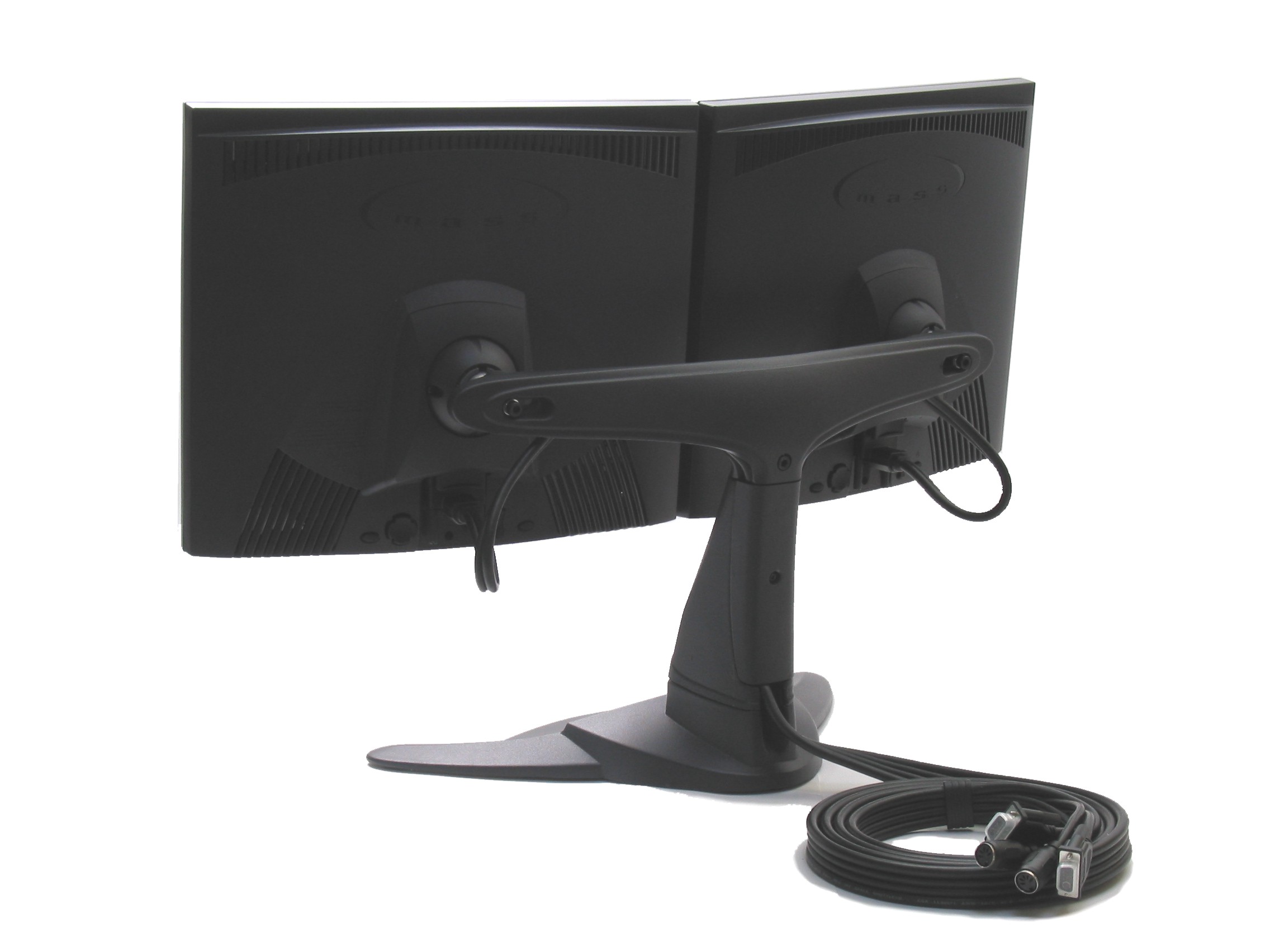

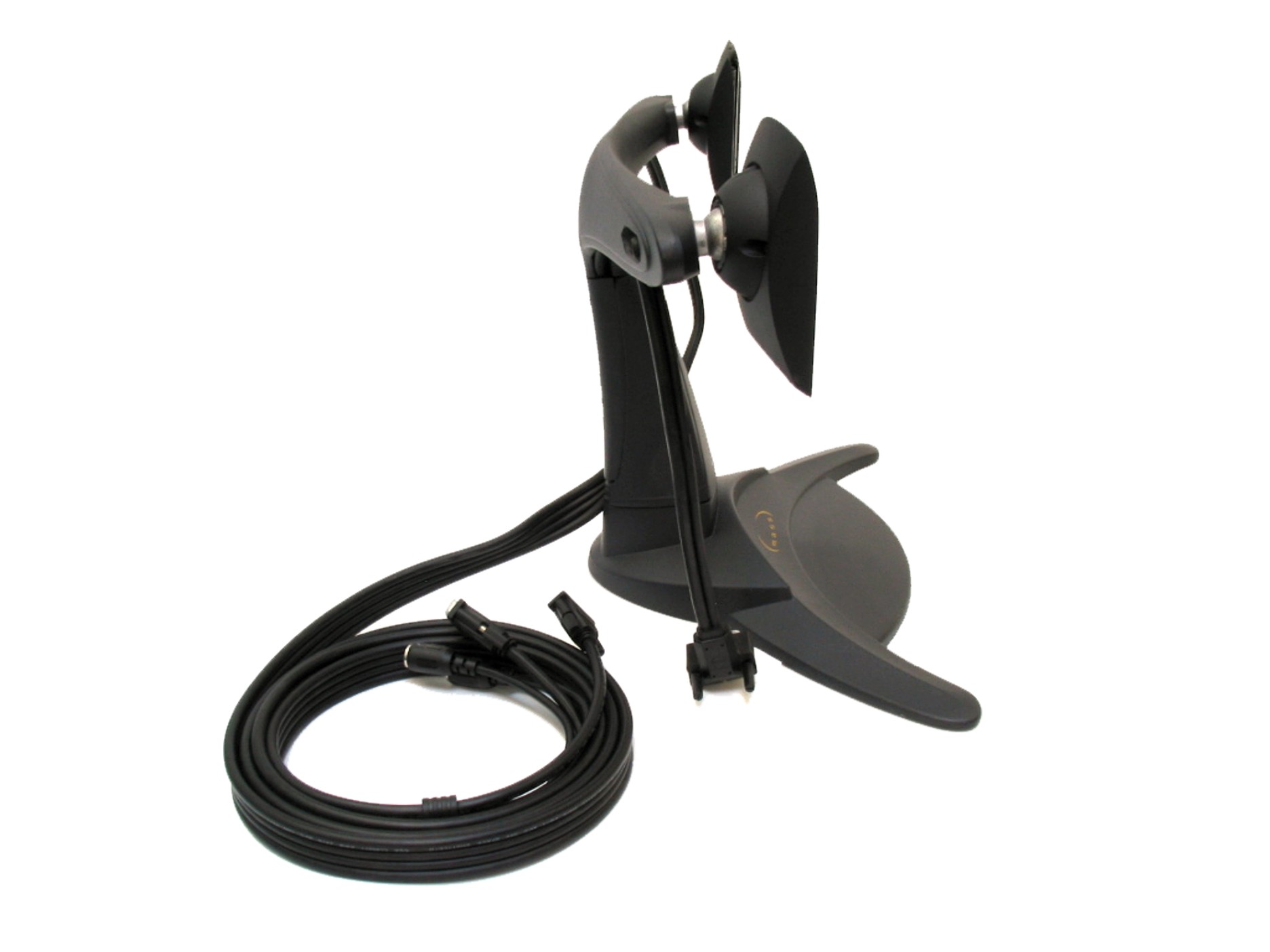

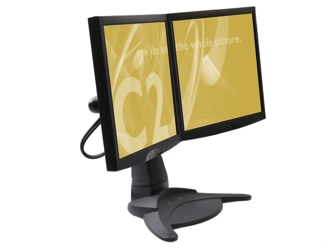

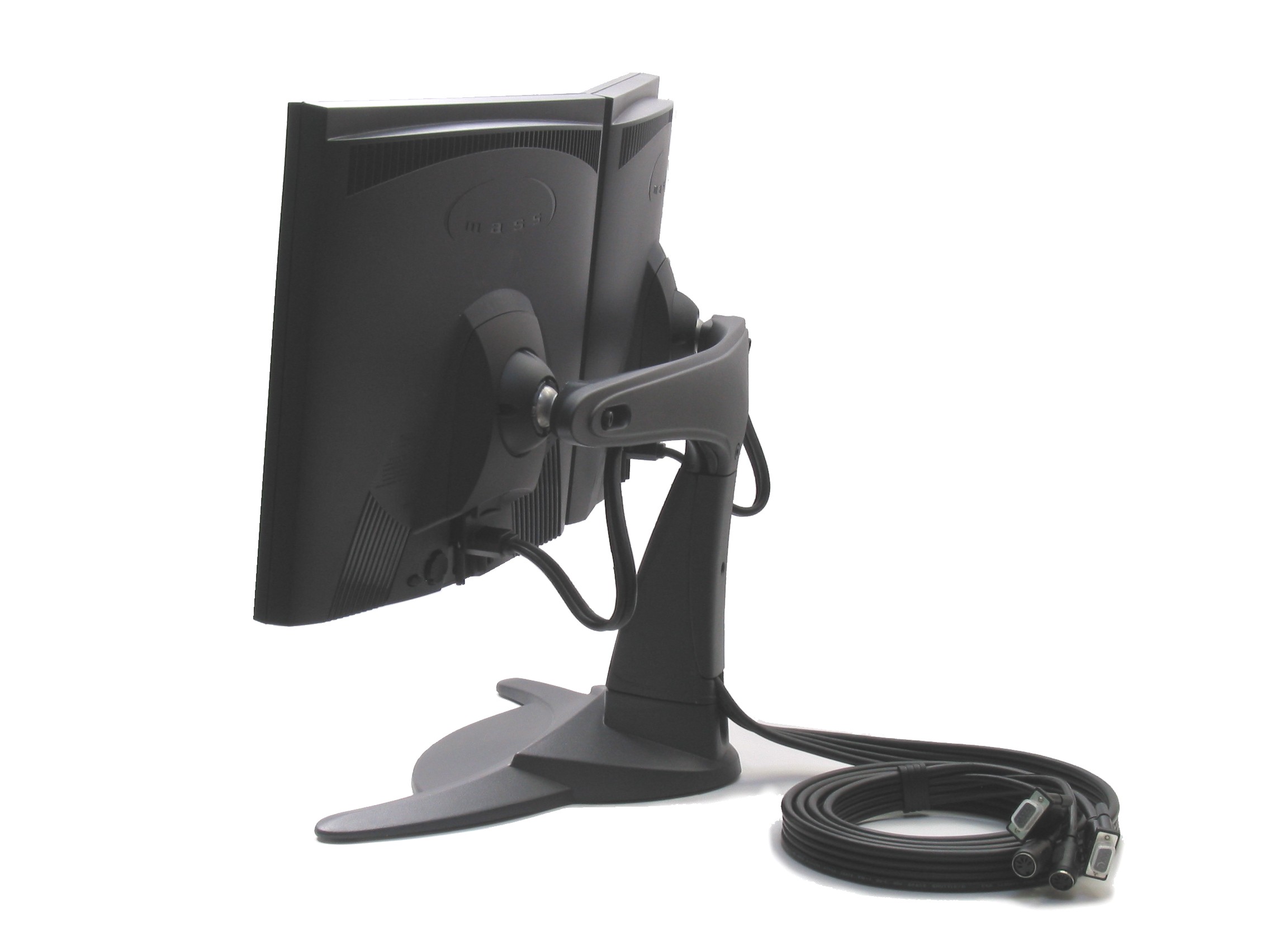

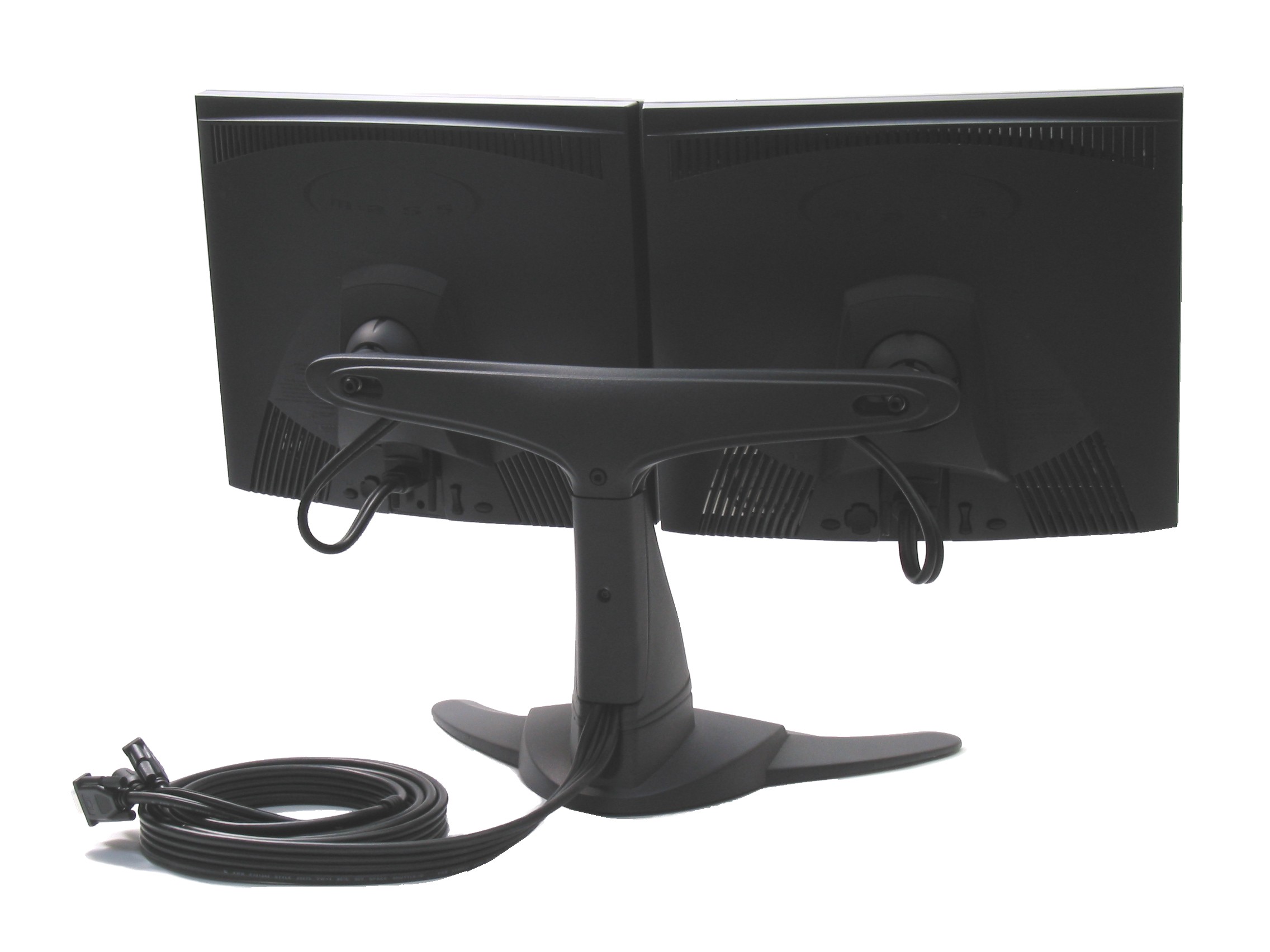

Alternative Closeup Views [
